AC Light Blinking: What It Means & How to Fix It

We see the sudden panic that sets in when your air conditioner starts flashing an unexpected light. AC Light Blinking: What It Means & How to Fix It is the most common question we answer daily. That persistent blinking is actually a built-in protective mechanism to prevent severe hardware damage.

Our team of 26 technicians has been decoding these exact LED patterns across Singapore since 2003 as part of our aircon servicing in Singapore expertise. Identifying the root cause often involves a tripped temperature sensor rather than a catastrophic compressor failure.

We will outline the exact diagnostic steps to try before booking a professional repair.

Daikin Error Codes

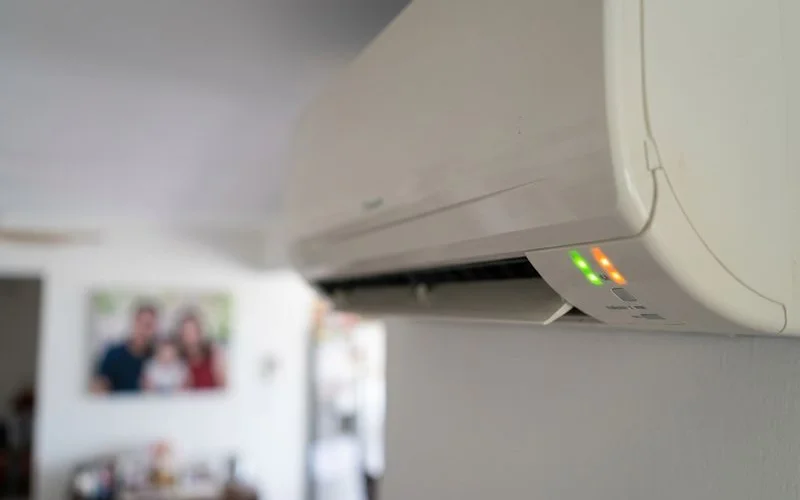

Daikin units are highly popular in residential HDB flats, but their error communication can be confusing. Our technicians frequently encounter the dreaded blinking green operation light. A continuous green blink without a pause usually indicates normal operation, but specific sequences reveal distinct faults.

We recommend pulling the exact alphanumeric code using your remote control via these steps:

• Point the remote at the fan coil and hold the “Cancel” button for five seconds until “00” appears.
• Press the same button repeatedly until you hear a long, continuous beep.
• Look at the code on the screen during that beep to identify your exact fault.

Decoding Daikin LED Patterns

Our diagnostic logs from 2026 show three primary patterns that homeowners report. The orange timer light will often blink in tandem with the green operation light.

Blink Pattern	Meaning	Action
Green blinks continuously	Normal operation	No action needed
Green 2x, pause	Indoor fan motor issue	Call technician
Orange 4x, pause	Compressor protection	Turn off, wait 30 min, restart
Both blinking	Communication error	Check power supply, call technician

We often see the U4 code indicating a communication error between the indoor and outdoor units. This specific failure often stems from a damaged printed circuit board caused by high ambient humidity. Another frequent culprit is the A5 error, which points to freeze-up protection kicking in because of a severely choked air filter.

Mitsubishi (Starmex) Error Codes

Mitsubishi Starmex units dominate many condominiums, and their diagnostic system relies heavily on the operation indicator light. Our service calls often begin with a homeowner reporting a continuous double blink on a new unit. This specific double blink on models like the MSXY-FN10VE frequently happens right after DIY cleaning.

The system features a safety switch that trips if the louvre flap is not pushed in and clipped perfectly. A simple adjustment to the left side of the louvre holder clears the fault instantly.

We must differentiate between a single unit problem and a whole-system failure. If you own a multi-split system and only one indoor unit is flashing, the defect is isolated to that specific fan coil. The outdoor condenser is likely the faulty component if every unit in your home displays a blinking light simultaneously.

Common Starmex Indicator Signals

Our experience shows that counting the flashes is the fastest way to diagnose a Starmex system. The operation indicator will flash a set number of times, pause, and repeat the sequence.

Blink Pattern	Meaning	Action
1 blink	Room sensor error	May need sensor replacement
2 blinks	Pipe sensor error	Check outdoor unit
5 blinks	Compressor overload	Turn off, wait 30 min
7 blinks	Outdoor fan issue	Call technician

We always check the exact model number printed at the bottom of the fancoil before replacing parts. The distinction between an R1 and R2 motherboard version is critical for a successful repair. You will save time by snapping a photo of the model sticker before calling a technician.

LG Error Codes

LG units provide a more straightforward diagnostic experience by displaying alphanumeric codes directly on the indoor unit panel. Our engineers appreciate this digital readout because it eliminates the guesswork of counting flashes. The highly popular LG DualCool series uses these CH codes to communicate everything from minor sensor trips to critical inverter failures.

The CH05 error is currently the most frequent issue reported in our 2026 service records. This code signals a communication breakdown between the indoor and outdoor units.

We strongly advise against ignoring a CH21 code under any circumstances. This specific warning means the compressor is overloaded or physically locked. Forcing the system to run with a CH21 error will destroy the compressor and lead to a massive replacement bill.

Vital LG Fault Codes

Our database highlights three specific codes that require immediate attention. A quick response to these warnings extends the lifespan of your equipment.

Code	Meaning	Action
CH05	Communication error	Check wiring
CH10	Compressor sensor	Call technician
CH38	Outdoor temp sensor	Call technician

We frequently encounter the CH38 code during the hottest months of the year. Low refrigerant pressure usually triggers this sensor and shuts the system down. You must hire a certified professional to conduct a pressure test and seal the leak before topping up the gas.

AC Light Blinking: What It Means & How to Fix It

A blinking light does not always guarantee a massive repair bill. Our 2026 service records show that nearly 85% of sudden blinking light issues stem from dirty filters triggering a temperature sensor or a choked drainage pipe.

A power surge from a recent thunderstorm can also scramble the printed circuit board and cause a false error. If you suspect a thermostat issue, that could also trigger blinking lights. Resetting the hardware gives the sensors a chance to recalibrate.

We recommend performing a hard reset at the isolator switch rather than just using the remote control. The 20-amp isolator is typically mounted on the wall near your outdoor compressor.

Essential Steps Before Calling a Technician

Try these basic steps first:

1. Turn off the main isolator switch for 15 minutes to clear the motherboard cache, then restart.
2. Clean the filter thoroughly, as a clogged filter triggers freeze-up protection and error codes.
3. Check the remote settings to ensure it is set to cooling mode at a low temperature.
4. Inspect the home circuit breaker to verify the power supply is stable.

If the blinking persists after these steps, WhatsApp us with a photo or video of the blinking pattern. Our technicians can often identify the issue before arriving.

If you are still wondering about AC Light Blinking: What It Means & How to Fix It, visit our aircon not cold troubleshooting page or book a professional diagnosis through our contact page.
