Aircon Piping: Types, Common Problems & When to Replace

We often see property owners in Singapore ignore their piping until a leak damages their ceiling.

The physical tubes connecting your indoor and outdoor units do heavy lifting every single day. This critical network carries high-pressure refrigerant gas and condensation water across your home.

Our team at Billy Aircon has handled thousands of these systems as part of our aircon servicing in Singapore since starting with just five technicians back in 2003. Today, a 26-person crew helps us resolve these exact material failures daily. Let’s review the data on material choices and outline exactly when a replacement makes sense, focusing on Aircon Piping: Types, Common Problems & When to Replace them.

Types of Aircon Pipes

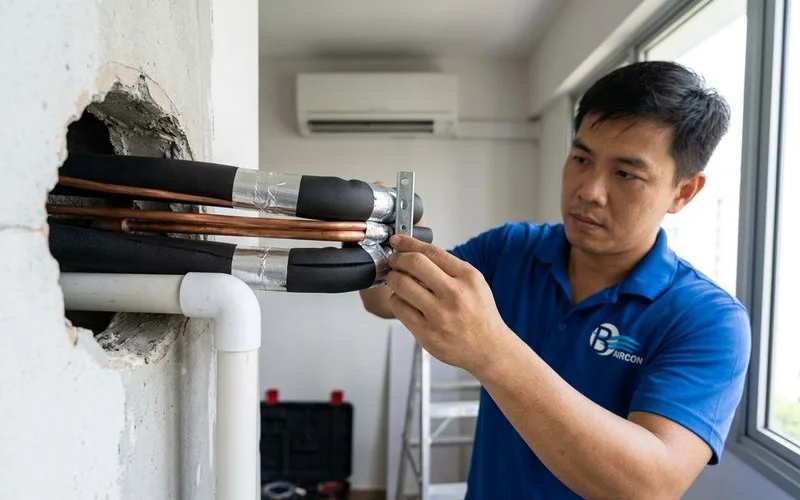

Refrigerant Pipes (Copper)

We use copper tubes to carry refrigerant between your indoor and outdoor units. A smaller liquid line moves high-pressure liquid refrigerant to the fan coil, and a larger suction line carries the low-pressure gas back out to the compressor.

Our technicians always check the thickness of these tubes during an inspection. The Standard Wire Gauge (SWG) rating dictates this measurement in Singapore.

Many older HDB flats feature SWG 23 copper, which measures 0.61mm thick. Modern R32 refrigerant systems operate at higher pressures, so you need the thicker SWG 22 material at 0.71mm.

Specification	Thickness	Best Used For
SWG 23	0.61mm	Older R22 or R410a systems
SWG 22	0.71mm	Modern R32 systems (Higher pressure)

We highly recommend matching these copper pipes with premium Armaflex or K-Flex insulation. The current 2026 industry standard for residential properties requires a 1/2-inch thickness. Older setups often relied on 3/8-inch foam, which struggles to prevent condensation in our local humidity.

Condensate Drain Pipe (PVC)

Our installers use a PVC pipe to carry condensation water from the indoor drainage tray to an external floor trap. This specific line relies entirely on gravity, requiring a consistent downward slope to function.

The diameter of this tube matters immensely for preventing clogs. A 13mm PVC pipe used to be the default choice across most housing estates. Upgrading to a 16mm drain pipe improves water flow and drastically reduces algae buildup.

Common Piping Problems

Damaged Insulation

We frequently encounter deteriorating foam sleeves wrapped around copper lines. Warm, humid air quickly touches the freezing cold copper surface when this barrier breaks down. This rapid temperature clash causes condensation to drip directly onto your walls and ceilings. Learn more in our insulation guide.

A common mistake involves cramming thick 1/2-inch insulation into a tight 4-inch by 3-inch trunking casing. This compression squeezes the air pockets out of the foam and ruins its thermal resistance.

Refrigerant Leaks

Our repair calls often involve gas loss at the flare joints connecting the equipment. Corroded sections of copper will also let refrigerant escape over time. You might notice ice forming on the tubes, a sudden drop in cooling power, or faint hissing sounds. See our guide on gas leak signs.

Clogged Drain Pipe

We clear blocked drainage systems almost every single day. The condensate drain frequently chokes up with dust, algae jelly, and sludge. This specific blockage is the number one cause of aircon water leaks in local homes.

Pipe Length Issues

Our engineers must carefully calculate the routing distances for larger homes and condominiums. Excessively long runs force the compressor to work harder, reducing the system’s efficiency. Maximum recommended lengths vary by specific brand and model.

Current HDB regulations mandate that all piping must run internally within your flat. You also face a maximum weight limit of 110kg per wall panel for the condensing units outside.

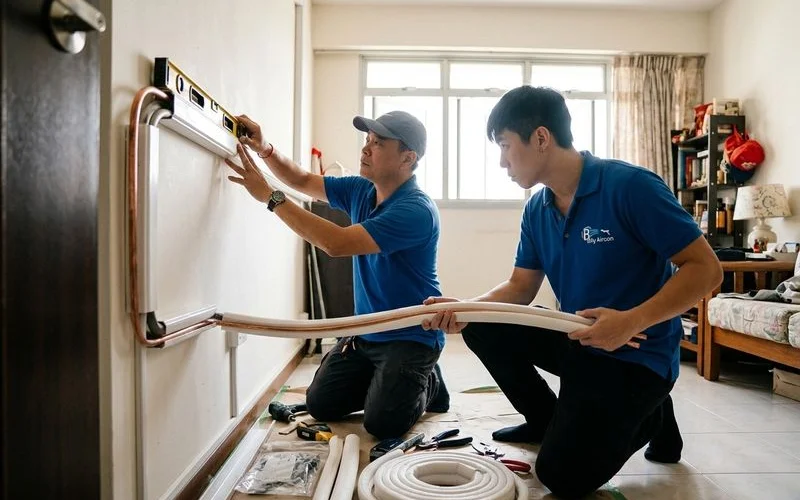

When to Replace Piping

We usually suggest a complete pipe replacement when the materials hit the 10 to 15-year mark. Replacing the entire network in Singapore typically costs between SGD 500 and SGD 2,000 based on length.

Consider a full upgrade when you notice the following red flags:

• Visible green patina corrosion appearing on the copper tubes
• Multiple gas leaks requiring patching at different connection points
• Severely deteriorated foam insulation along most of the run
• Upgrading to a new R32 system requiring thicker SWG 22 specifications

Our customers living in condominiums face higher replacement costs due to concealed routing. Running new tubes inside a false ceiling often requires an extra SGD 800 to SGD 1,000 for cutting and patching works.

Maintenance Tips

We encourage property owners to be proactive with their cooling systems. Keeping the exposed trunking protected from direct sunlight prevents the plastic from turning brittle.

Follow these proven steps to maximize the lifespan of your setup:

• Ensure the 16mm drain line gets flushed during regular visits
• Request a vacuum extraction of the drain pan to remove algae jelly
• Report water stains on your ceiling to a technician immediately
• Verify your installer is BCA-certified for any HDB bracket modifications

Our regular servicing visits include thorough checks of these critical connections. For reliable aircon installation with proper routing work, WhatsApp us for a professional quote.

Conclusion

We hope this guide helps you manage your equipment more effectively. Taking care of your Aircon Piping: Types, Common Problems & When to Replace them makes a massive difference in your monthly energy bills.

Reach out to a certified professional the moment you spot a leak or a drop in cooling performance. A quick fix today often prevents an expensive ceiling repair tomorrow.
